TECHNICAL DETAILS

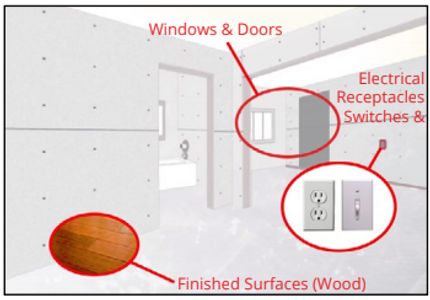

Temporarily block windows and doors; cover electrical

receptacles and switches; protect finished surfaces.

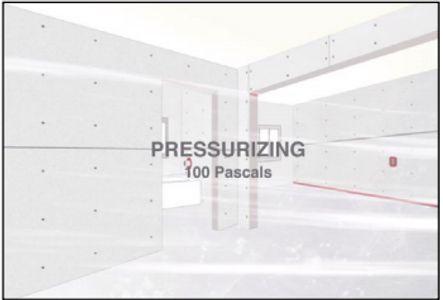

Pressurize the space and its air leakage with a

computer-controlled atomization system.

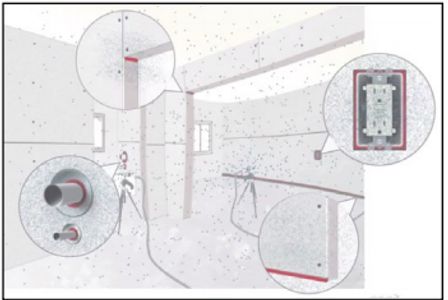

Allow the particles to build up around any gaps and

holes to seal leakage areas without coating surfaces.


Temporarily block windows and doors; cover electrical

receptacles and switches; protect finished surfaces.


TECHNICAL DETAILS

AeroBarrier is a single-component, high performance, synthetic, permeable, aerosol-applied sealant that performs

as an air barrier around ceilings, walls, floors, doors, windows, and electrical and plumbing fixtures. It is UV-stable,

seamless, monolithic, and can be applied over a wide range of temperatures. AeroBarrier offers a 10-year product

warranty and certified results.

• Process can start as soon as building can be pressurized

• Seals up to 1/2” and as small as a human hair

• Service temperature: intermittent exposure up to 240°F

• Tack free time: <60 min

• GreenGuard certified

• Low VOC content: meets LEED requirements

• Color: sandstone grey

PROCESS

STEP 1:




Prepare house for sealing. Cover all large

openings (drains, bathroom vents, etc.) and

horizontal surfaces, set up sealing equipment,

and pressurize home.

STEP 2:



Start the sealing process and begin to aerosolize the  Sealant. Air currents will transport & deposit sealant particles along the leaks throughout the space.

STEP 3:

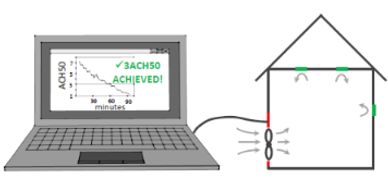

The software regulates the entire process; controlling all parameters, monitoring

the sealing, recording all data, and verifying air-tightness target is achieved

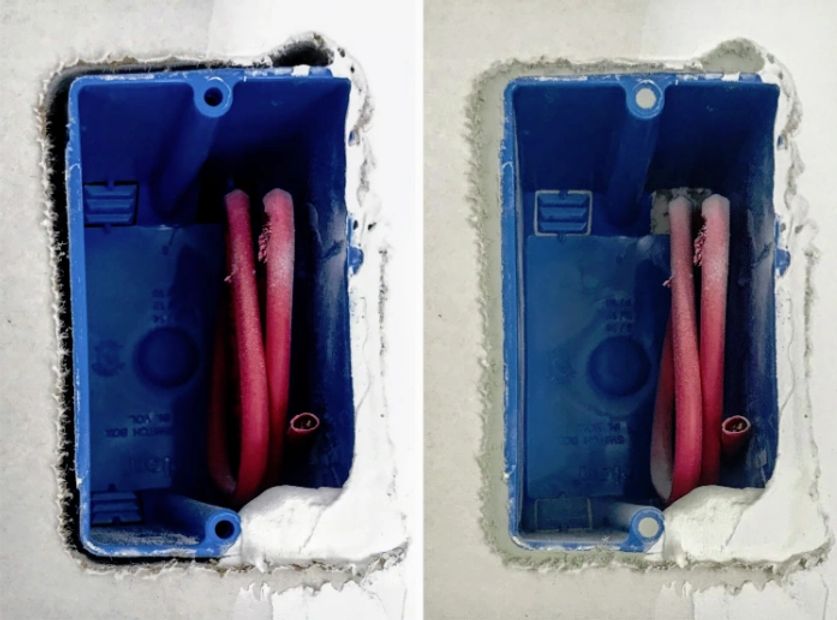

BEFORE & AFTER
